TFS50

Products Features:

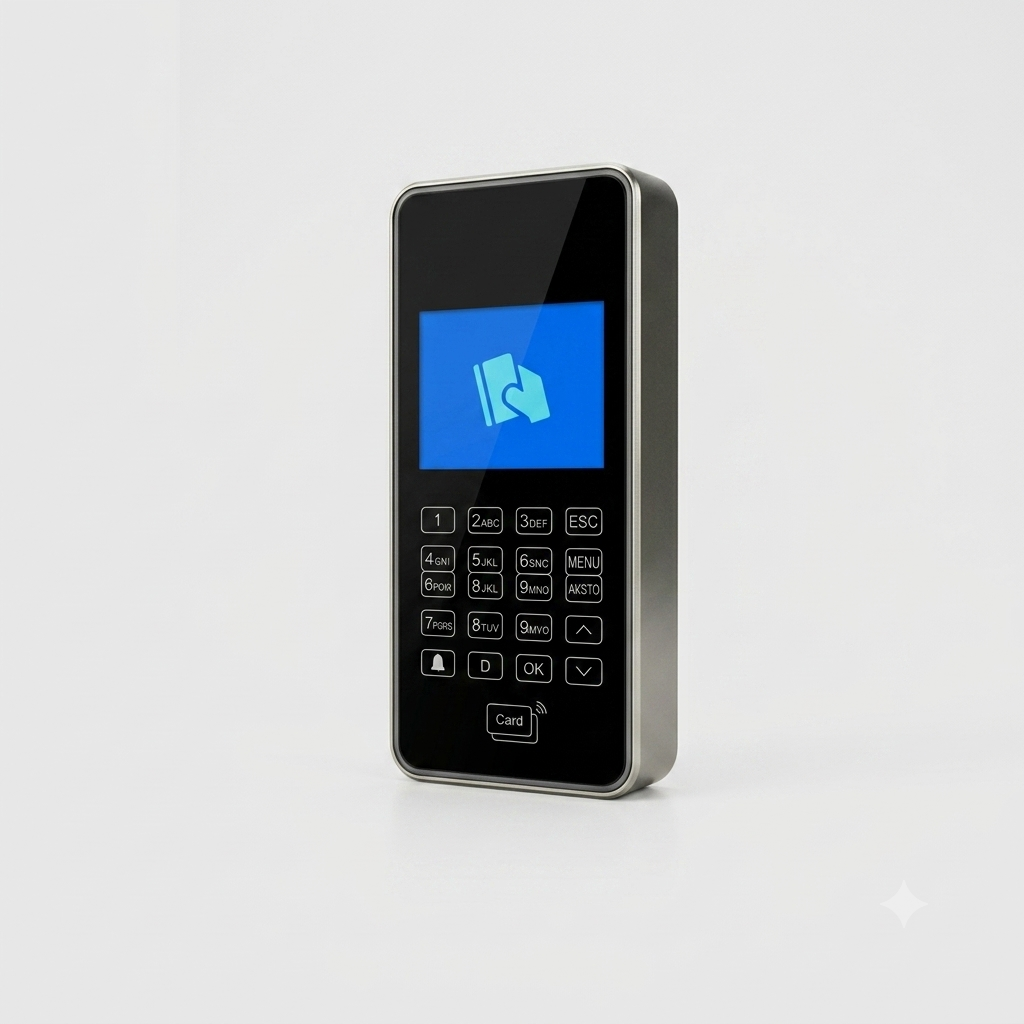

✦Metallic case, new design with touch keypad, slim and elegant,2 inch Touch Key Fingerprint accces control device with Aluminum alloy Case

✦Applied capacitive fingerprint sensor, which is good at recognizing live finger and long lasting use

✦Support T9 input method, ID and IC card swiping together

✦Standard TCP/IP, RS485, USB, U disk for communication with computer and server together.

✦Support self-service report. You can export and import user information and shift setting in excel format. It also support export excel attendance report from device directly with USB flash drive.

✦Professional access control, Tamper alarm, duress alarm, door open alarm, Wiegand input and output, door magnetic detection, anti-passback, interlock, fire linkage and other professional access control functions
✦IP 67 Waterproof standard(optional)

ModelTFS50(Network Biometric Access Control System)
WorkingStandalone or Network
Identification StyleFingerprint/Password/Mifare/ID
Identification Speed<1 sec
FAR<0.01
FAR<0.0001
Fingerprint Capacity3000
Card Capacity3000
Display2.0 TFT Color LCD
LanguageEnglish/Spanish/Turkish/Arabic/Thai/French and so on
CommunicationWAN remote/RS485/TCP/IP/USB/Wifi
Humidity20%-60%
Temperature0℃-40℃
Time Zone and Groups8 time zones and 8 time groups, 5 combinations
Wiegand outWiegand 26&34
InputDoor sensor, exit button
OutputElectric Lock
AlarmDefend, Unlock and Threaten
VoiceBoom,Dual LED
Power SupplyDC12V
Anti-passbackIn&out door
Size140*44*20mm
Other FunctionsWiFi/IP 67 Waterproof (optional)
